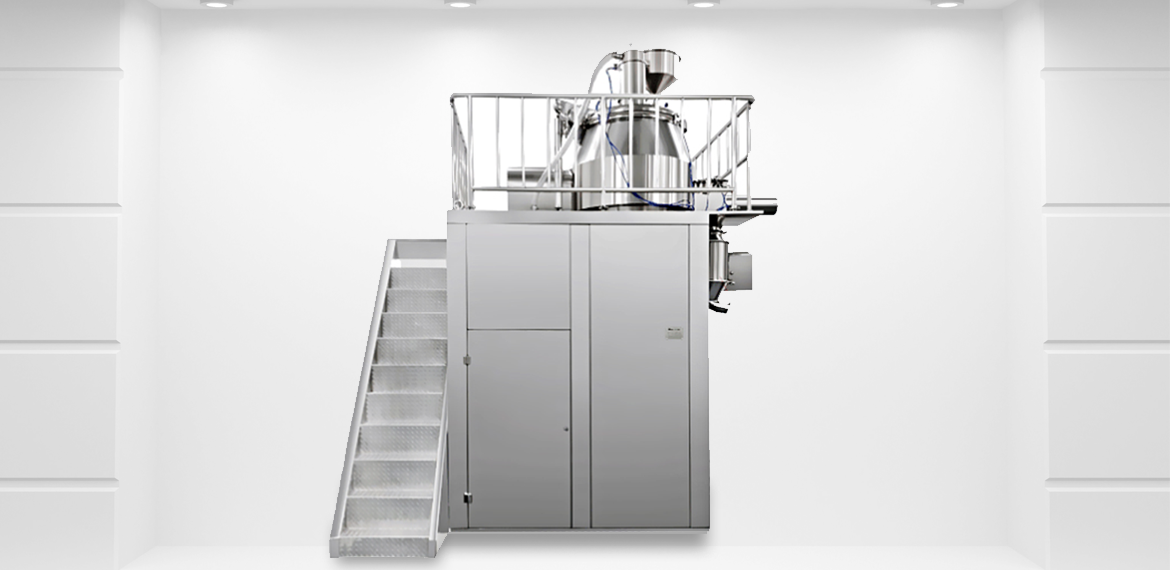

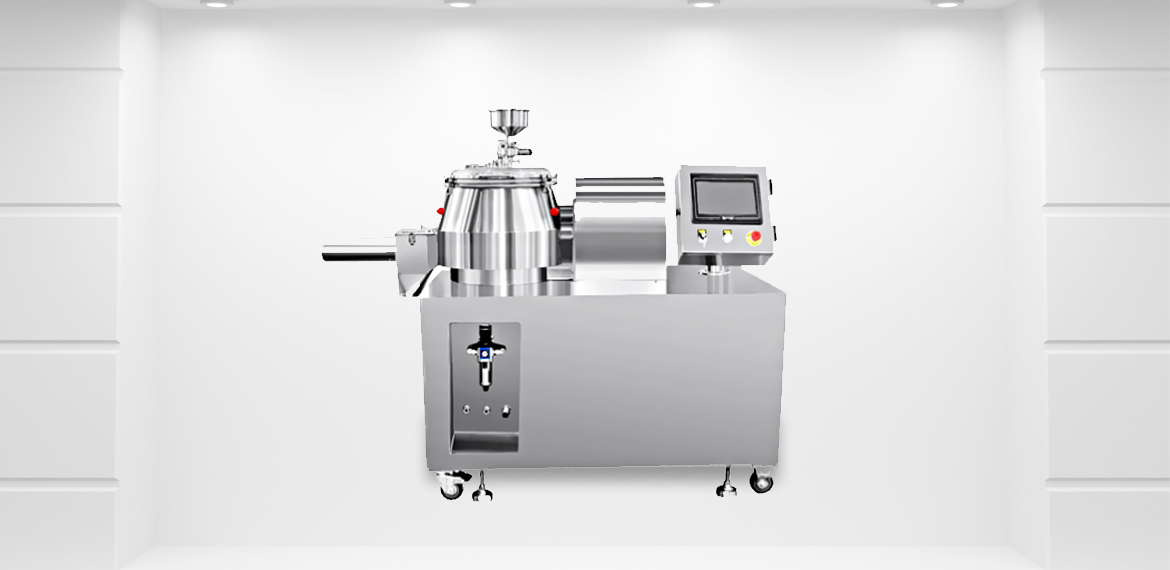

Bodhi Innovations High Shear Mixer Granulator is a high shear machine, developed for mixing as well as granulation. The multibladed dual speed impeller and chopper performs the mixing and breaking of materials.
Unique design incorporating Impeller, Granulator, Online Co-mill, Side discharge valve and dryer
Internal and External surfaces of Mixing Bowl, Mixing Bowl cover, Impeller, Granulator, and Discharge Chute constructed in SS 304/316L
Specially mounted torque sensor arrangement for critical parameters of granulation like end point determination and desired granule profile
Impeller Lifting Options
- Motorized Impeller Lifting for ease of cleaning
- Electromechanical impeller lifting and removing mechanism
- Pneumatically operated Lid lifting
- ATEX Compliant option available
In principle all sizes of our High shear mixer granulator are
| Model No. | Gross
Capacity | Working
Capacity | Batch Capacity
in Kgs | Main Motor HP
(750- 1500 RPM) | Chopper Motor HP
(1500- 2880 RPM) | Gear Box
Ratio | Wet-Mill Motor HP | Dimensions | Net Weight |
|---|
| BOINNS - RMG - 3 | 3 Liters | 2.4 Liters | 0.6 - 1.2 Kgs | 2 HP / 2 HP | 0.5 HP / 1.0 HP | 7:1 | NA | 1200 L X 600 W X 1300 H | 600 Kgs |
| BOINNS - RMG - 5 | 5 Liters | 4 Liters | 1 - 2 Kgs | 2 HP / 2 HP | 0.5 HP / 1.0 HP | 7:1 | NA | 1300 L X 600 W X 1400 H | 600 Kgs |
| BOINNS - RMG - 10 | 10 Liters | 8 Liters | 2- 4 Kgs | 2 HP / 2 HP | 0.5 HP / 1.0 HP | 7:1 | NA | 1400 L X 600 W X 1500 H | 600 Kgs |
| BOINNS - RMG - 25 | 25 Liters | 20 Liters | 05 - 10 Kgs | 3 HP / 5 HP | 1.5 HP / 2.0 HP | 5:1 | NA | 1800 L X 700 W X 1600 H | 800 Kgs |
| BOINNS - RMG - 50 | 50 Liters | 40 Liters | 10 - 20 Kgs | 5 HP / 7.5 HP | 2.0 HP / 3.0 HP | 5:1 | NA | 2000 L X 750 W X 2200 H | 1100 Kgs |
| BOINNS - RMG - 100 | 100 Liters | 80 Liters | 20 - 40 Kgs | 7.5 HP / 10 HP | 2.0 HP / 3.0 HP | 7.5:1 | 1 | 2700 L X 2500 W X 2600 H | 1800 Kgs |
| BOINNS - RMG - 150 | 150 Liters | 120 Liters | 30 - 60 Kgs | 10 HP / 15 HP | 3.0 HP / 5.0 HP | 7.5:1 | 1.5 | 2800 L X 2600 W X 2600 H | 2300 Kgs |
| BOINNS - RMG - 250 | 250 Liters | 200 Liters | 50 - 100 Kgs | 22.5 HP / 30 HP | 3.0 HP / 5.0 HP | 10:1 | 2 | 3000 L X 2700 W X 2700 H | 3000 Kgs |
| BOINNS - RMG - 300 | 300 Liters | 240 Liters | 60 - 120 Kgs | 22.7 HP / 30 HP | 3.0 HP / 5.0 HP | 10:1 | 2 | 3200 L X 2800 W X 2800 H | 3300 Kgs |
| BOINNS - RMG - 400 | 400 Liters | 320 Liters | 80 - 160 Kgs | 35 HP / 40 HP | 5.0 HP / 7.5 HP | 10:1 | 3 | 3500 L X 3000 W X 2900 H | 3600 Kgs |
| BOINNS - RMG - 600 | 600 Liters | 480 Liters | 120 - 240 Kgs | 40 HP / 50 HP | 5.0 HP / 7.5 HP | 10:1 | 5 | 3600 L X 3100 W X 3200 H | 4700 Kgs |
| BOINNS - RMG - 700 | 700 Liters | 560 Liters | 140 - 280 Kgs | 40 HP / 50 HP | 5.0 HP / 7.5 HP | 10:1 | 5 | 3700 L X 3200 W X 3300 H | 4800 Kgs |
| BOINNS - RMG - 800 | 800 Liters | 640 Liters | 160 - 320 Kgs | 50 HP / 60 HP | 5.0 HP / 7.5 HP | 15:1 | 5 | 3800 L X 3300 W X 3400 H | 5200 Kgs |
| BOINNS - RMG - 1000 | 1000 Liters | 800 Liters | 200 - 400 Kgs | 60 HP / 90 HP | 10.0 HP / 15.0 HP | 15:1 | 7.5 | 4000 L X 3500 W X 3800H | 5600 Kgs |
| BOINNS - RMG - 1200 | 1200 Liters | 960 Liters | 240 - 480 Kgs | 80 HP / 100 HP | 10.0 HP / 15.0 HP | 15:1 | 7.5 | 4200 L X 3800 W X 3900H | 5800 Kgs |
| BOINNS - RMG - 1400 | 1400 Liters | 1120 Liters | 280 - 560 Kgs | 100 HP / 100 HP | 10.0 HP / 20.0 HP | 20:1 | 7.5 | 4400 L X 4000 W X 4100H | 6200 Kgs |
