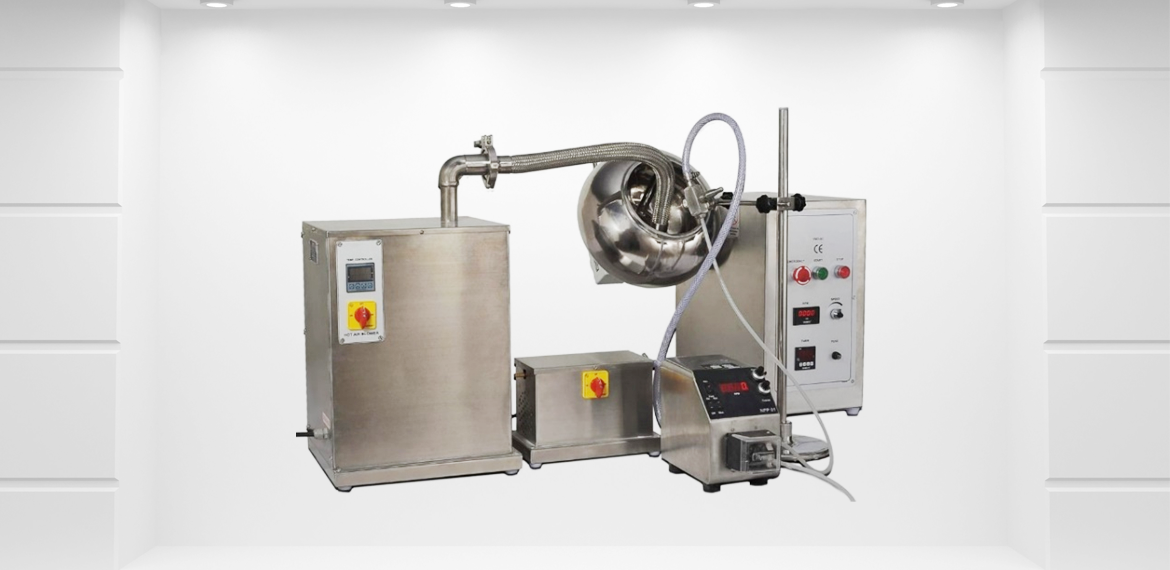

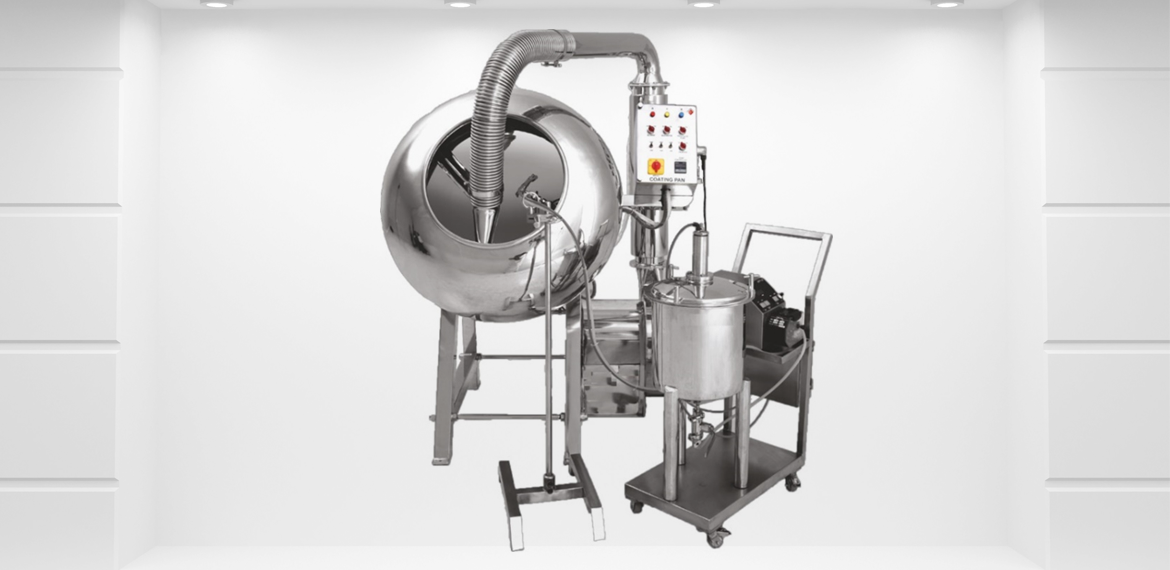

Bodhi Innovations are engaged in offering our esteemed clients with a qualitative range of Coating Pans, these are widely used in the process of coating tablets and confectionaries, wherein the skills of the coater need to be supplemented by a correctly designed, versatile coating pan. Our range has a very heavy & sturdy structure and is made from angles as well as channels.
The coating pan must have effective baffles to allow proper mixing of bulk tablets during coating . The pan must be fitted with a retractable arm for spray assembly which is an angle adjustable device for spray/dosing header.
Salient Features
- Design is cGMP Practices compliance.
- All contact parts AISI 316/304 & non-contact parts AISI 304.
- Conventional coating system for manual film coating and sugar coating.
- Machine is designed with fabricated structure fitted with SS enclosure which makes simple, cleanable outside covering and mounted on anti-vibration pad.
- Closed powerful pan drive with reduction gearbox and motor by variable speed pulley.
- Movable hot air blowing system with electric heater.
- Easy to replace polishing pan and other size coating pan.
Optional Features
- A.C. frequency Drive for pan
- Fixed or detachable type baffles
- Interchange different size Pan & Polishing Pan
- Atomized Spraying system with Spray Gun Peristaltic Pump and Solution tank and Electro Pneumatic controls
- Pressurized vessel with spray gun
- Flame Proof Electrical
In principle all sizes of our Coating Pan are available.
| MODEL NO | BOIN CP 12 | BOIN-CP-20 | BOIN-CP-24 | BOIN-CP-30 | BOIN-CP-36 | BOIN-CP-48 | BOIN-CP-60 | BOIN-CP-72 |
|---|
| Pan Dia In Inch | 12 | 20 | 24 | 30 | 36 | 48 | 60 | 72 |
| Loading Capacity | 5 KG | 10 KG | 25 KG | 40 to 60 | 60 to 80 | 100 to 120 | 150 to 200 | 200 to 250 |
| Drive Motor HP | 0.5 | 0.5 | 0.5 | 1 | 1 | 2 | 5 | 7.5 |
| RPM of Pan | 30 to 40 | 30 to 40 | 3.0 to 4.0 | 3.0 to 4.0 | 30 to 40 | 30 to 40 | 30 to 40 | 30 to 40 |
| Hot air blower motor HP | 0.25 | 0.25 | 0.25 | 0.5 | 0.5 | 1 | 1 | 1 |
| Blower capacity Maximum CFM | 100 | 100 | 100 | 200 | 200 | 500 | 750 | 750 |
| Heater K.W. | 1 Kw | 1 Kw | 1.5 Kw | 3.0 Kw | 3.0 Kw | 4.5 Kw | 6.0 Kw | 6.0 Kw |
