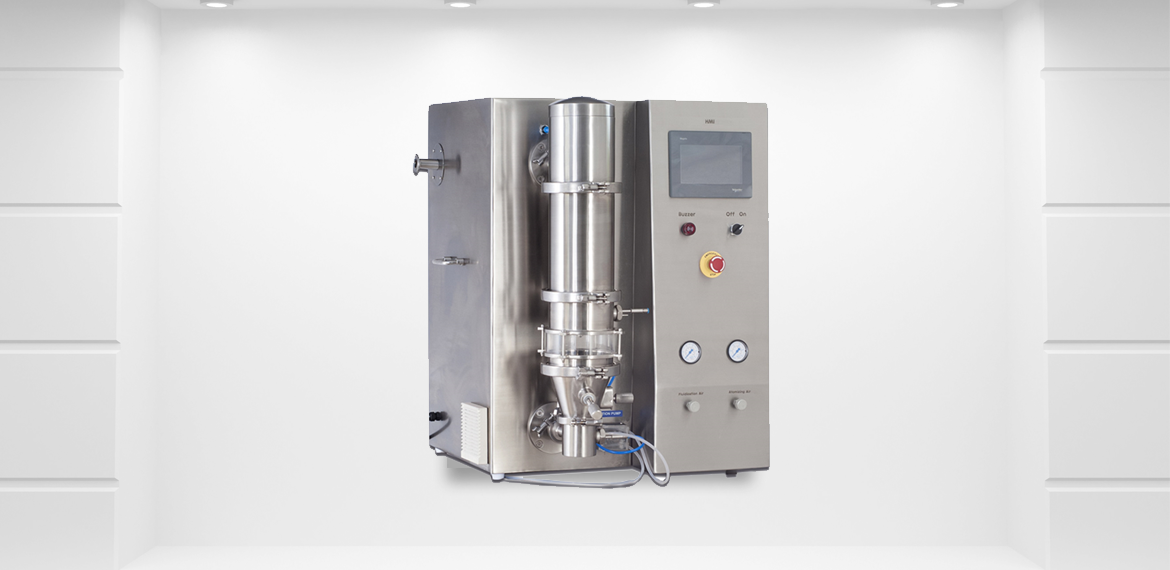

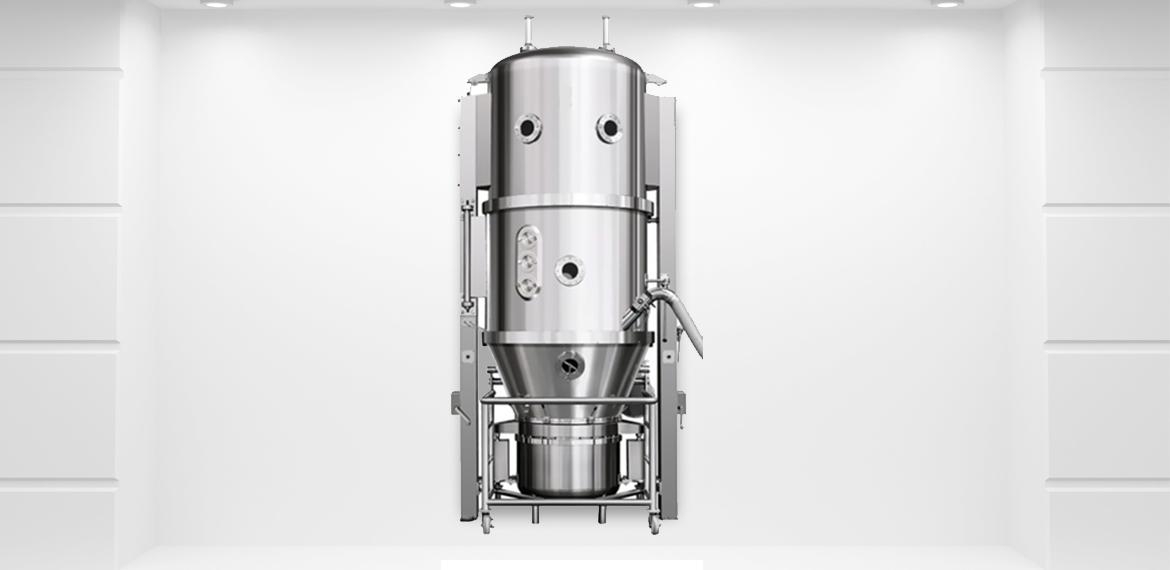

Bodhi innovations supply fluid bed Dryer for drying applications in the pharmaceutical industry. This includes small capacity systems designed for R&D as well as industrial-size plants for the batch production of pharmaceutical compounds under cGMP conditions
warm air is blown through a perforated distributor to rapidly and gently dry materials until the required residual moisture content is reached. Moisture evaporated from the product is exhausted with the drying air, providing very short processing times.
- Ergonomically mounted observation windows provided for viewing drying operation
- Inlet / Outlet dampers have proportional control valve
- Proportional control temp controller
- Inlet / Exhaust Location: Several alternatives to suit customer requirements.
- Control: By PLC monitor with printer as optional.
- Specially designed explosion flaps
- Intrinsically safe system of earthling with low voltage
- Steam radiator In SS to SS construction
- Inflatable Silicon Seals used in the system
- 2 Pneumatic Cylinders 1 for the Bag Up and Down movement and the other for Impact Bag Shaking
- Tri level filtration using 20 microns for Pre-Air filtration,5 micron for Secondary Air filtration,0.3 micron for Final Air filtration through HEPA, air Dehumidification on special demand
- Complete SS 304 Ducting for Air Exhaust
- Specially designed Broken Bag Detector
- Double skinned SS 304 AHU with a built in Face and By Pass damper for ± 1 ˚ Temperature control
- Specially designed antistatic anti sparking High static high efficiency blower installed
- Flush Sampling port provided for extracting small quantities of coated product during operations
In principle all sizes of our Fluid Bed Dryer are available
| Model No. | BOIN-FBD-3 | BOIN-FBD-5 | BOIN-FBD-15 | BOIN-FBD-30 | BOIN-FBD-60 | BOIN-FBD-120 | BOIN-FBD-150 | BOIN-FBD-200 | BOIN-FBD-250 | BOIN-FBD-300 | BOIN-FBD-400 | BOIN-FBD-500 | BOIN-FBD-600 |
|---|
| Working Capacity in Ltrs | 9 | 18 | 45 | 90 | 170 | 290 | 350 | 475 | 575 | 675 | 900 | 1110 | 1330 |
| Max. Working Volume in Liters | 6 | 10 | 30 | 60 | 120 | 240 | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 |
| Batch Size (Kg) Min. & Max. | 2 - 3 | 4 - 5 | 10 - 15 | 20 - 30 | 50 - 60 | 80 - 120 | 100 - 150 | 150 - 200 | 200 - 250 | 200 - 300 | 300 - 400 | 400 - 500 | 500 - 600 |
| Blower Motor HP | 2.0 | 3.0 | 5.0 | 5.0 | 10.0 | 20.0 | 20.0 | 25.0 | 25.0 | 30.0 | 40.0 | 40.0 | 50.0 |
| Air Flow (CFM) | 270 | 350 | 550 | 750 | 1100 | 1900 | 2000 | 2588 | 2700 | 3235 | 3824 | 4412 | 5500 |
| Air Flow (m3/Hrs) | 460 | 595 | 935 | 1275 | 1870 | 3230 | 3400 | 4400 | 4590 | 5500 | 6500 | 7500 | 9350 |
| Steam Pressure (Kg/cm. sq.) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Steam Consumption (Kg/Hr) | 26 | 36 | 45 | 90 | 130 | 150 | 186 | 216 | 244 | 344 | 344 | 344 | 344 |
| Electrical Heater (kW) | 9 | 12 | 18 | 20 | 36 | NA | NA | NA | NA | NA | NA | NA | NA |
| Compressed Air Pressure (Bar) | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 |
| Drying Temperature (°C) | 27 - 80 °C | 27 - 80 °C | 27 - 80 °C | 27 - 80 °C | 27 - 80 °C | 27 - 80 °C | 27 - 80 °C | 27 - 80 °C | 27 - 80 °C | 27 - 80 °C | 27 - 80 °C | 27 - 80 °C | 27 - 80 °C |
| Electrical Supply | 3 Ph. AC | 3 Ph. AC | 3 Ph. AC | 3 Ph. AC | 3 Ph. AC | 3 Ph. AC | 3 Ph. AC | 3 Ph. AC | 3 Ph. AC | 3 Ph. AC | 3 Ph. AC | 3 Ph. AC | 3 Ph. AC |
