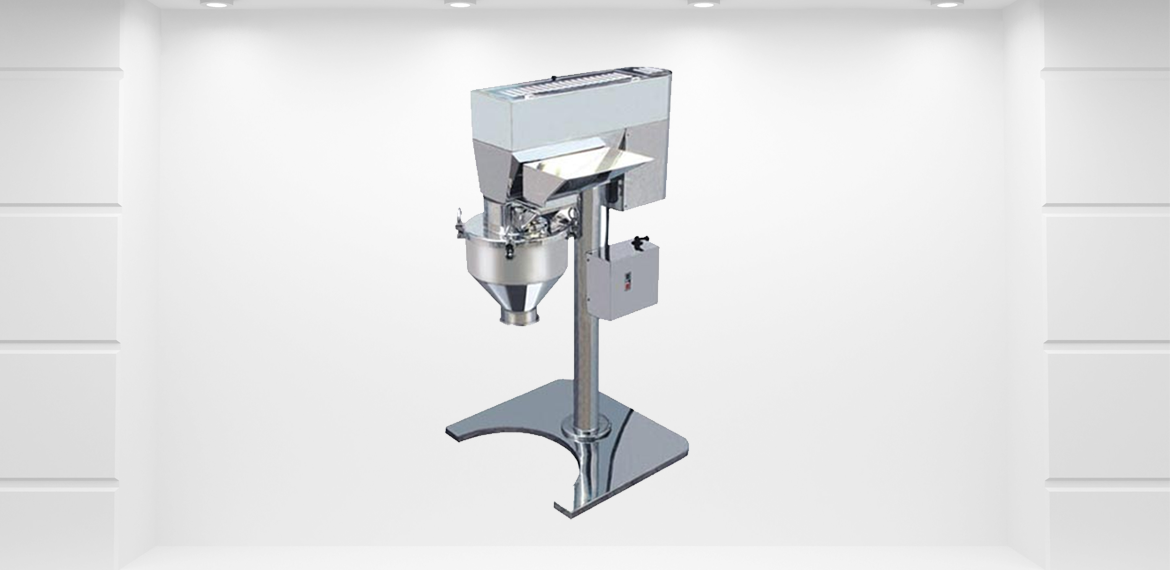

Boinns Multi mill is used for high speed Granulating, Pulverizing, Mixing, Shredding and Chopping, etc. of a wide range of wet and dry materials without special attachments.
Multi mill operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction. Material fed in the hopper, goes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially avoiding chocking and temperature rise. Finally the processed material gets collected in the container kept below the processing chamber.
Output and quality of the final product depends on three main factors:
- Shape of beaters (knife/impact edges)
- Speed
- Screen
Features
- Machine Portable on Castor wheels, High output with Process uniformity, All contact parts are in SS 316, Built in Variable Frequency Drive for multiple speeds
- Direction of the Blade rotation can be changed using a Reversing switch for Hammer or Knife operation
- Multiple combinations of Screens / Speeds / Number of Blades / Direction of blade rotation for every Product type
- Higher Screen opening area, Minimal material handling resulting in Total Dust free operation
- Easy Dismantling and Cleaning of all Components reducing Production Downtime and increasing Productivity

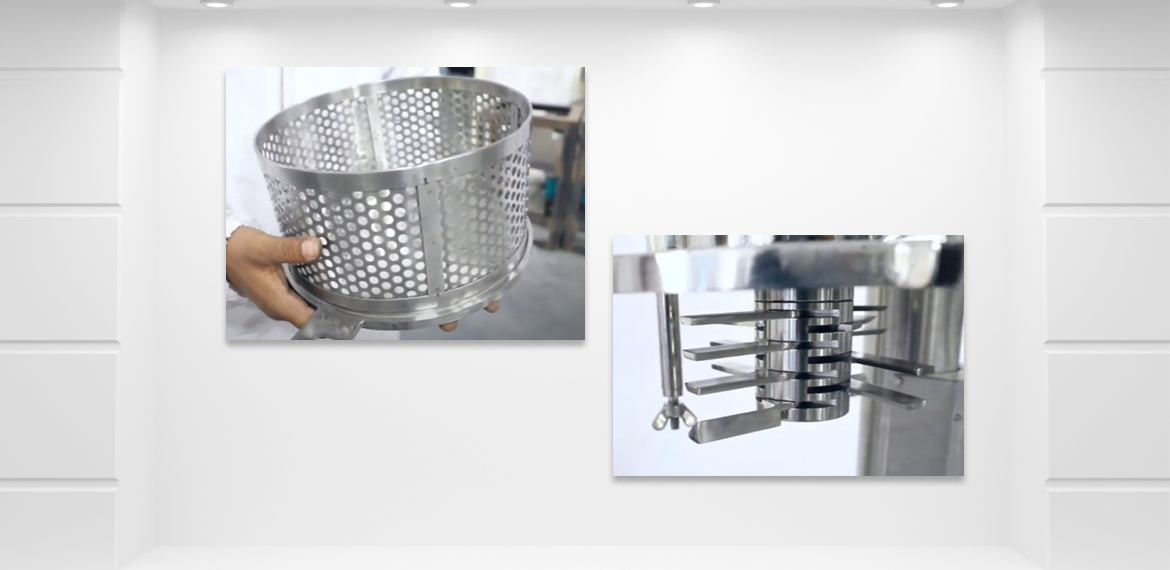

- Wide range of SS perforated and Wire knitted screen available for every Product type
- Additional perforated screen at the bottom of pulverizing chamber ensuring Higher Fineness and Controlled Size of Granules
