Boinns Pneumatic conveying systems are basically quite simple and are eminently suitable for the transport of powdered and granular materials in pharmaceutical industry.The system requirements are a source of compressed gas, usually air, a feed device, a conveying pipeline and a receiver to disengage the conveyed material and carrier gas.
The system is totally enclosed, the system can operate entirely without moving parts coming into contact with the conveyed material. High, low or negative pressures can be used to convey materials. For hygroscopic materials dry air can be used, and for potentially explosive materials an inert gas such as nitrogen can be employed.
A particular advantage is that materials can be fed into reception vessels maintained at a high pressure if required. Pipelines can run horizontally, as well as vertically up and down, and with bends in the pipeline any combination of orientations can be accommodated in a single pipeline run.
Material flow rates can be controlled easily and monitored to continuously check input and output, and most systems can be arranged for completely automatic operation.
A very wide range of materials can be handled and they are totally enclosed by the system and pipeline. This means that potentially hazardous materials can be conveyed quite safely.
Design Features Design Construction
- Closed system for dust free operations
- Buffer vessel provision to avoid choking & assist in continuous feeding of product
- Reduction in manpower required for charging
- Improved agitation and thus reduced batch time, through controlled material addition
- Reduces solids handling and eliminates hoists and handling equipment
- Easier to clean than conventional vacuum conveying equipment; CIP available
- Automatic pulse filter cleaning mechanism for improved process efficiency
- Integrated HIM system for automated process ,Existing process steps can be linked
- Multiple options available for different applications: Fixed, Mobile & Wall mounted
- Effective and reliable system for transfer of powders and granules
- Dust free operations
- Batch time reduction, Time savings, Manpower savings
- Easy cleaning and maintenance
In principle all sizes of our Powder Transfer System are available
| Model | Gross Capcity

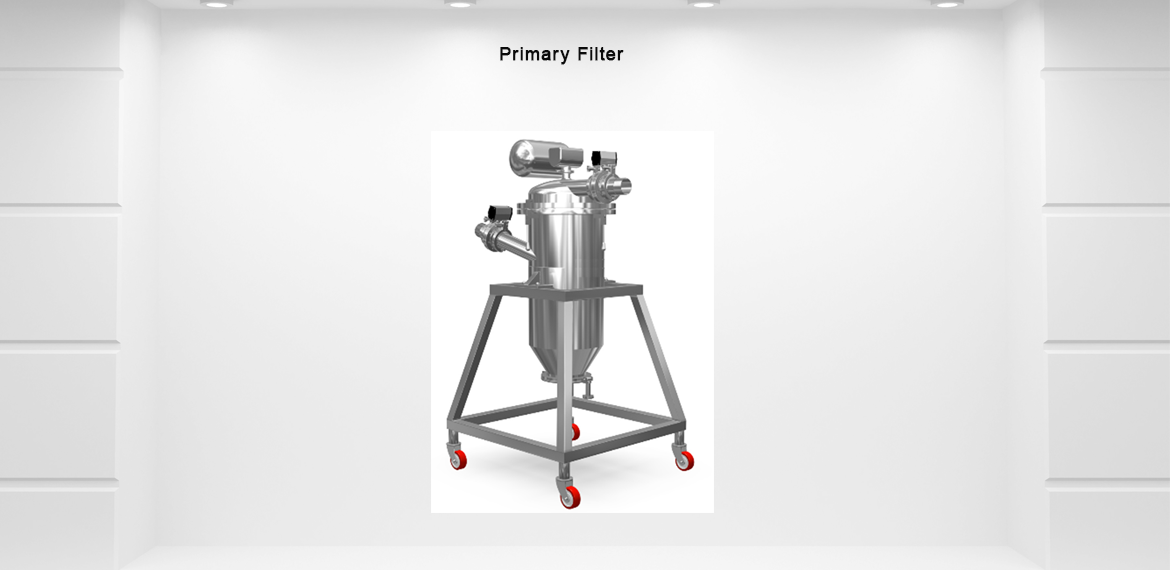

(Kg/Hr) | Primary Filter

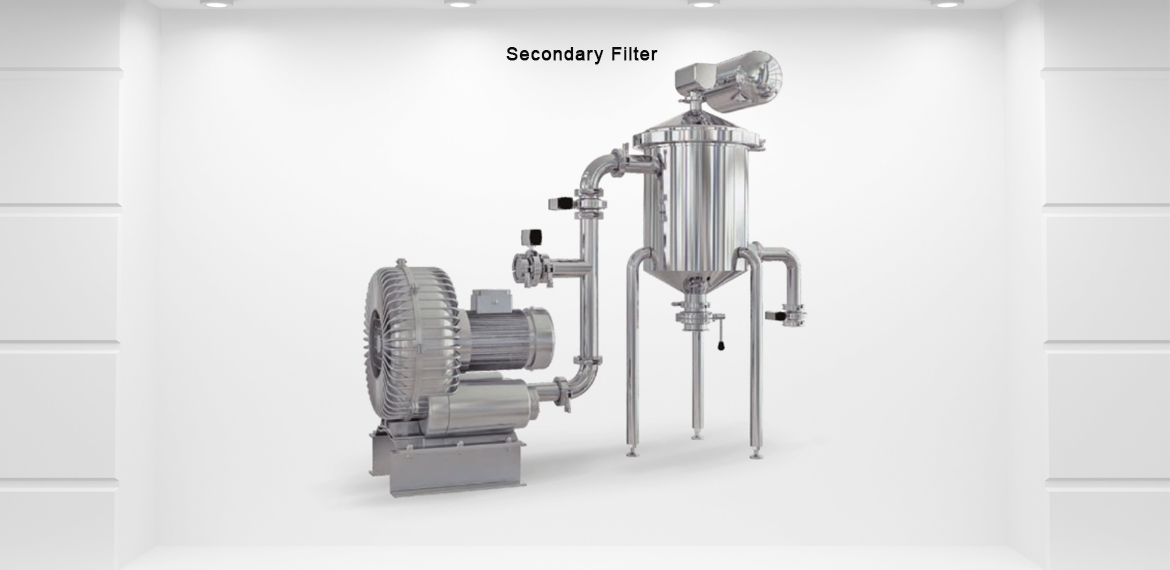

Volume (Ltrs) | Secandary Filter
Volume (Ltrs) | Blower
(Cfm) | Blower Motor
(Hp) | Approx Weight
(Kgs) |
|---|
|
| BOIN-PTS-500 | 250 | 30 | 50 | 200 | 2 | 300 |
| BOIN-PTS-500 | 500 | 30 | 50 | 310 | 3 | 380 |
| BOIN-PTS-1000 | 1000 | 50 | 70 | 310 | 3 | 450 |
| BOIN-PTS-1500 | 1500 | 50 | 70 | 350 | 5 | 520 |
| BOIN-PTS-2000 | 2000 | 80 | 80 | 420 | 5 | 650 |
| BOIN-PTS-3000 | 3000 | 80 | 80 | 550 | 7.5 | 700 |
