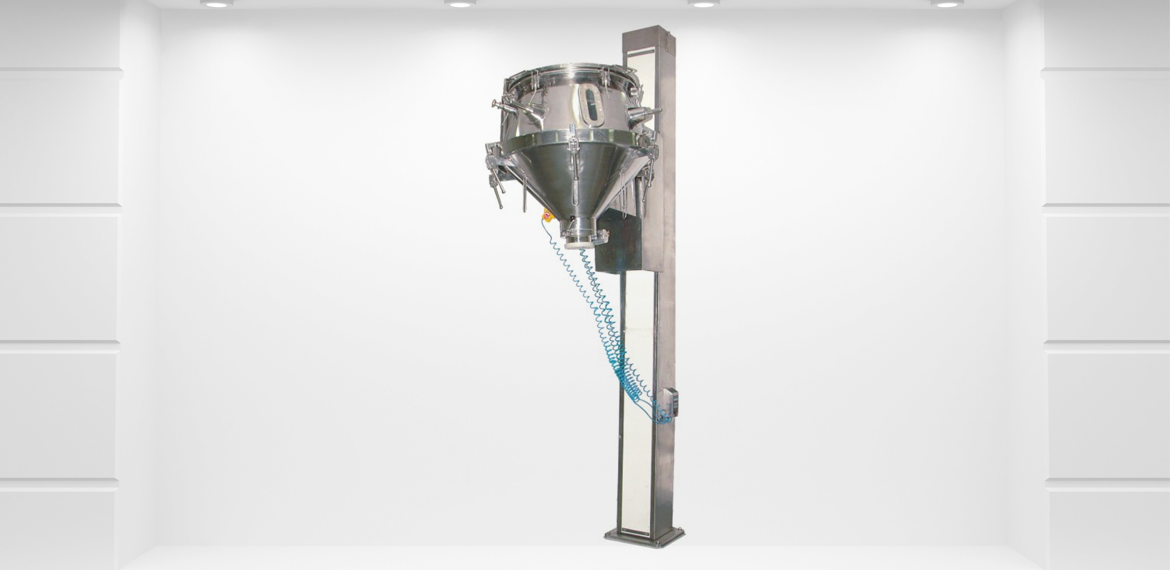

Boinns hydraulically or mechanically operated equipment, Tipper is used for lifting and tipping Fluid bed dryers Bowl with loaded dried granules transferred smoothly into containers It provides completely dust free operation and eliminates tedious scooping or manual handling.

The process consists of bringing the FBD Bowl beneath the Tipper. The inverted cone of the Tipper is lowered so that the flange of the bowl touches the flange of the inverted cone. Both are then clamped together with quick fixing clamps. The whole assembly is raised Hydraulically to the required height and then rotated mechanically to 180 degree on its axis and lowered to a suitable height to align with the receiving container/equipment.

The discharge point of cone is fitted with an Butterfly valve by operating which the contents are discharged to Multi Mill / Co Mill or a sifter cum Multi Mill as per the process requirement.

The flanged cone and the valve is of S.S. 316 /304 material, as required. The bottom and the complete drives are covered with highly polished S.S. 304 sheets to impart a cGMP finish.

Design Features

•   Pilot operated Hose Burst Valve on the hydraulic cylinder for hydraulic safety.
•   Timer control for discharge valve.
•   Discharge cone clamps are made of stainless steel with ease of clamping, design.
•   Discharge cone is fitted with a butterfly valve with SS316/304 material construction
•   Double acting in-house manufactured Hydraulic Cylinder with 3 stage Fail safe seals.
•   Hose burst protection system installed on the Cylinder making it fail safe.
•   Solid Machined trolley made out of 30 MM Machined Frame.
•   Limit switches for up & down movement.
•   Limit switches for stopping the cone in 0 degree & 180 degree
•   M.C.B. and overload relays for electrical faults.

Optional Features

•   Free standing unit, Hydraulic / Mechanical design.
•   Adjustable stop, Additional lift column height.
•   Twin Column for heavier loads.
•   Hydraulic arrangement for tilting.
•   Pneumatically actuated valve.
•   Single cone for 2 sizes of FBD Bowl with adaptor

In principle all sizes of our Cage Lifter are available.
