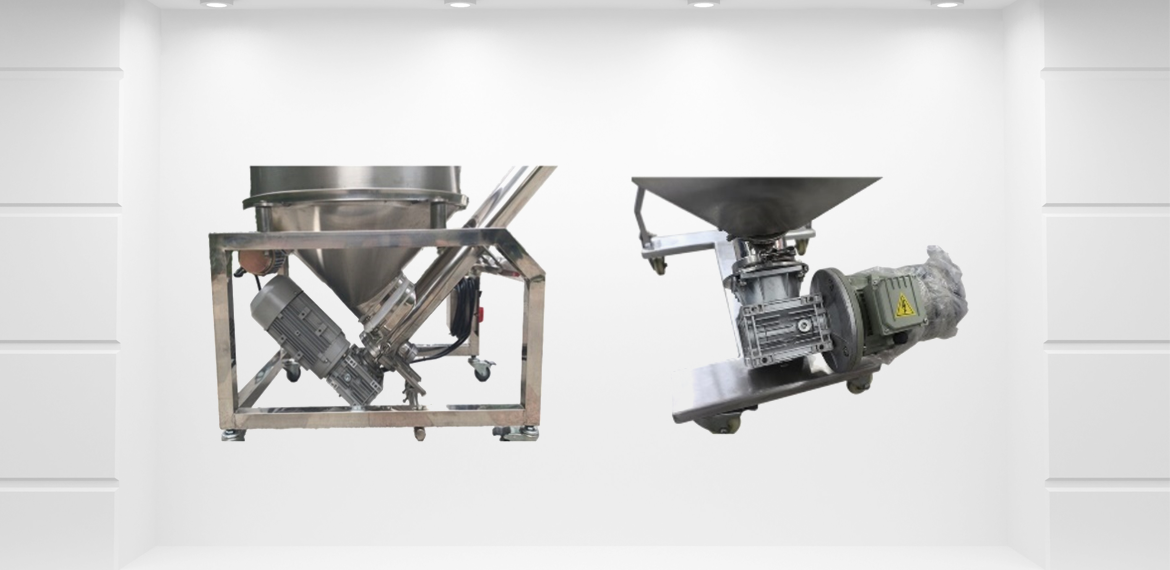

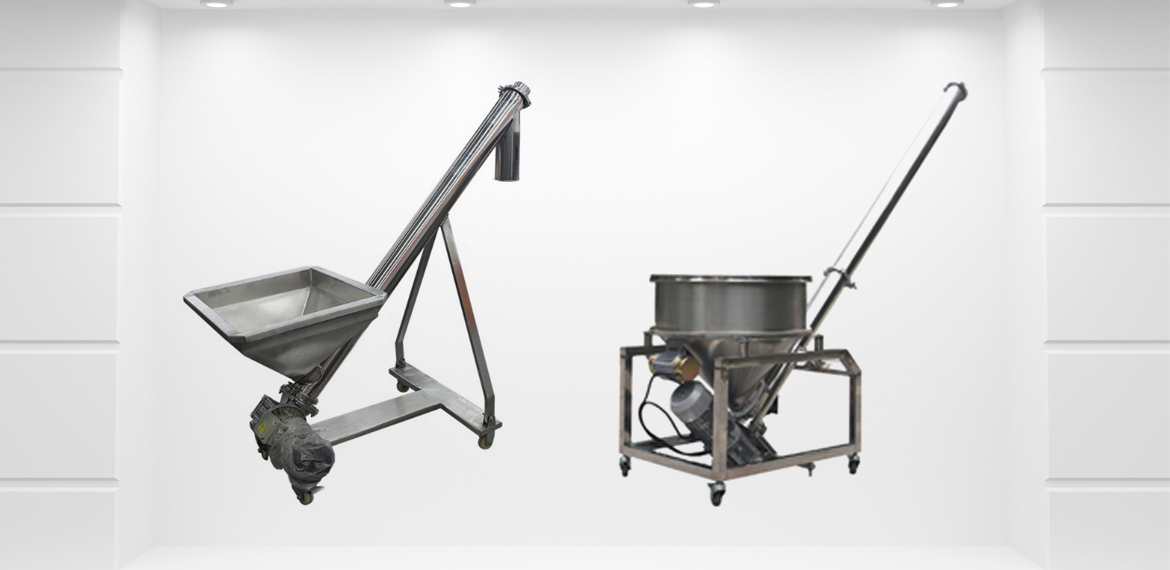

Boinns Screw conveyor are spiral bulk material transportation systems that convey raw ingredients to and from processing areas that are on different levels of a facility. These conveyors are slanted at different angles to economically elevate and convey materials up and down floors. They require ample space and an increased amount of power to lift the material, depending on the steepness of the angle. Screw conveyor, also called spiral conveyer, auger conveyor, screw feeder, vibrating conveyor, flexible screw conveyor, etc.
Screw conveyor is designed to transport series materials from one place to another. This kind screw conveyor can be used to transport series materials of powder, granular or small block in pharmaceutical industry.
It consists of a helical flight fastened around a pipe or solid shaft, mounted within a tubular or U-shaped trough. As the screw rotates, material heaps up in front of the advancing flight and is pushed through the tubular pipe. particles in the heap next to the flight surface are carried part way up the flight surface, and then flow down on the forward-moving side of the heap. Products can be conveyed and elevated at the same time by mounting a screw conveyor at an incline. This is often desirable because it covers two operations with one piece of equipment therefore saving space and reducing downtime, maintenance cost, etc. A standard Electric Screw Conveyor will often operate normally at angles up to 15º with only a small loss in capacity.
Features
- Strong adaptability, easy installation and maintenance, long service life.
- The machine is small in size, high speed, ensure rapid delivery uniformity.
- The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position arranged flexibly.
- Good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.
- The large bearing capacity, safe and reliable.
- Strong adaptability, easy installation and maintenance, long service life.
In principle all sizes of our Screw Conveyors are
| Model | Capacity
Kg/Hr | Screw
Dia.
(mm) | Screw
Pitch
(mm) | Transmission
Length
(mtr) | Inclined
Angle | Rotation
Speed(r/min) | Power
( Hp) | Hopper /
Silo Capacity
(Ltrs) | Loading Hopper Dimension (mm) |
|---|
| Length | height | width |
| BOIN-SC-100 | 50-250 | Φ100 | 100 | 2-3 | 0-60° | 50-60 | 1 | 150 | 600 | 600 | 500 |
| BOIN-SC-160 | 200-500 | Φ160 | 160 | 2-4 | 0-60° | 50-60 | 1.5 | 150 | 700 | 650 | 500 |
| BOIN-SC-200 | 500-1000 | Φ200 | 200 | 2-5 | 0-60° | 50-60 | 2 | 200 | 800 | 700 | 550 |
| BOIN-SC-250 | 1000-1500 | Φ250 | 250 | 2-6 | 0-60° | 50-60 | 2 | 250 | 900 | 750 | 600 |
| BOIN-SC-315 | 1500-2000 | Φ315 | 315 | 2-7 | 0-60° | 50-60 | 3 | 300 | 950 | 800 | 650 |
| BOIN-SC-400 | 2000-3000 | Φ400 | 355 | 2-8 | 0-60° | 50-60 | 3 | 500 | 1100 | 1200 | 800 |
| BOIN-SC-500 | 3000-5000 | Φ500 | 400 | 2-9 | 0-60° | 50-60 | 5 | 500 | 1100 | 1200 | 800 |
| BOIN-SC-630 | 5000-7500 | Φ630 | 450 | 2-10 | 0-60° | 50-60 | 5 | 600 | 1100 | 1200 | 800 |
| BOIN-SC-800 | 7500-10000 | Φ800 | 500 | 2-11 | 0-60° | 50-60 | 7.5 | 750 | 1400 | 1350 | 900 |
| BOIN-SC-1000 | 10000-15000 | Φ1000 | 560 | 2-12 | 0-60° | 50-60 | 7.5 | 750 | 1750 | 1500 | 1050 |
| BOIN-SC-1250 | 15000-20000 | Φ1250 | 630 | 2-13 | 0-60° | 50-60 | 10 | 750 | 1750 | 1500 | 1050 |
