Boinns V-Blenders designs are most often used for the intimate dry blending of free-flowing solids. The solids being blended in these units can vary in bulk density and in percentage of the total mixture. Materials being blended are constantly being split and intermixed as the shell rotates. Normal cycle times are typically in the range of 15 minutes, however can be less depending on the difficulty of blending.

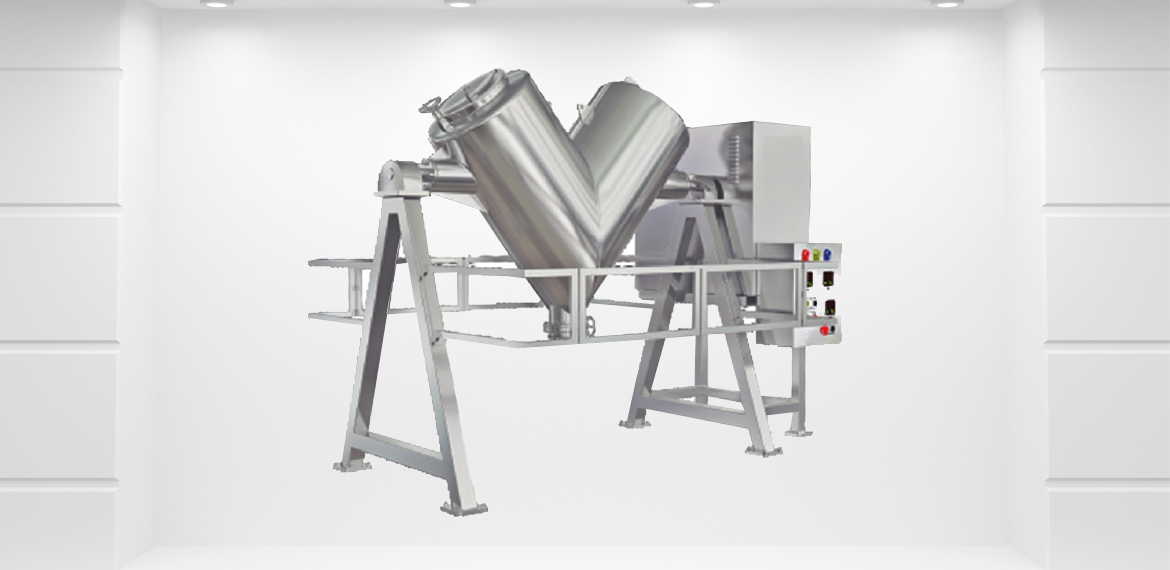

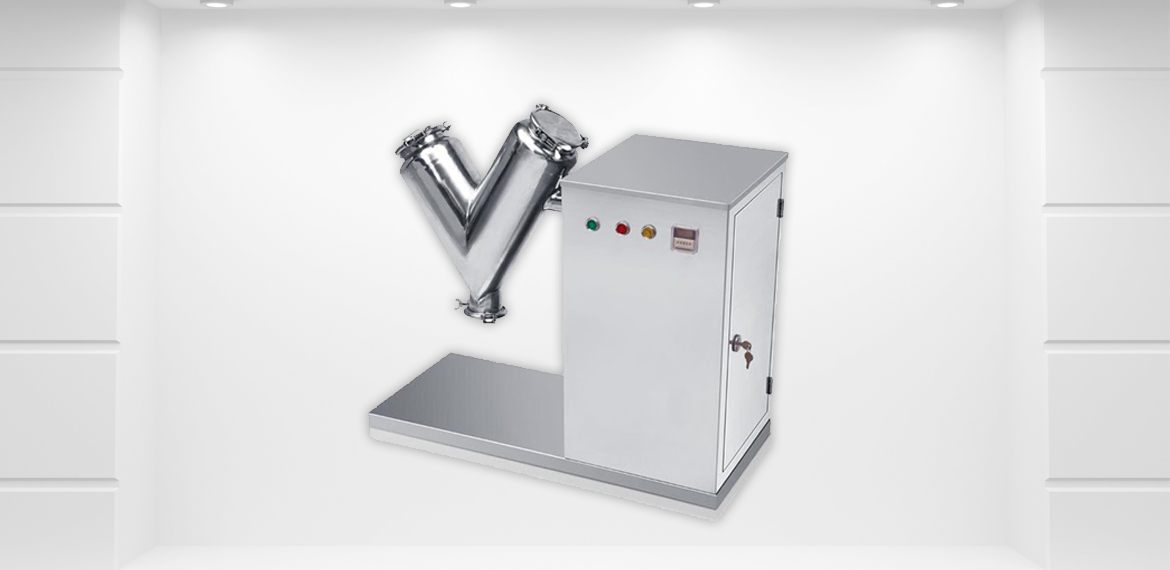

The V-Blender (also known as a twin shell blender) is one of the most commonly used tumbling blenders. The blending performance of this type of blender has shadowed many of the members in the blender family. They offer both short blending times and efficient blending.
Blenders are supplied with Intensifier bars to permit deagglomeration as needed. Discharge is accomplished through a manually or pneumatically operated Butterfly valve. The valve is positioned 24” from the floor when in the bottom position. All units are provided with appropriate safety railings and appropriately interlocked safety interlocks. Stop-Start and E-Stop Pushbuttons are included with all blenders.
The recommended fill-up volume for the V-Blender is 50 to 60% of the total blender volume. For example, if the fill of material in the blender is increased from 50% of the total volume to 70% of the total volume, the time taken for homogenous blending may be doubled
Standard Features
-
Intensifier bars for deagglomeration
-
Atmospheric construction
-
Type 316 stainless steel parts
-
150 grit exterior finish, mirror finish on internal surfaces
-
Stainless steel support stands
-
Manually operated butterfly discharge valves
-
Safety railings
-
Fully integrated motors and controls
-
Easy loading and unloading
-
Integrated Vacuum loading option available
-
Wide Capacity options available from 5 -1200L, with custom made capacities up to 10000L
-
Easy to clean with internal attachments like lump breakers and liquid dispensers
In principle all sizes of our V Blenders are available
| MODEL | GROSS CAPACITY
(In Liters) | WORKING CAPACITY
(In Liters) | OVERALL DIMENSIONS (in mm) | MOTOR HP | RPM | APPROX. WEIGHT
(in kg) |
|---|
| L | B | H | | |
| BOIN-VB-100 | 100 | 70 | 2300 | 950 | 2100 | 3 | 2 to 12 | 800 |
| BOIN-VB-300 | 300 | 210 | 2200 | 1050 | 2300 | 3 | 2 to 12 | 2000 |
| BOIN-VB-500 | 500 | 350 | 2500 | 1500 | 3200 | 5 | 2 to 12 | 2600 |
| BOIN-VB-1000 | 1000 | 700 | 2900 | 2700 | 4300 | 7.5 | 2 to 12 | 3000 |
| BOIN-VB-2000 | 2000 | 1400 | 3200 | 1800 | 4400 | 10 | 2 to 12 | 4000 |
| BOIN-VB-5000 | 5000 | 3500 | 4450 | 4520 | 4600 | 15 | 2 to 8 | 5500 |
| BOIN-VB-10000 | 10000 | 7000 | 5900 | 3000 | 7000 | 25 | 2 to 8 | 7000 |
