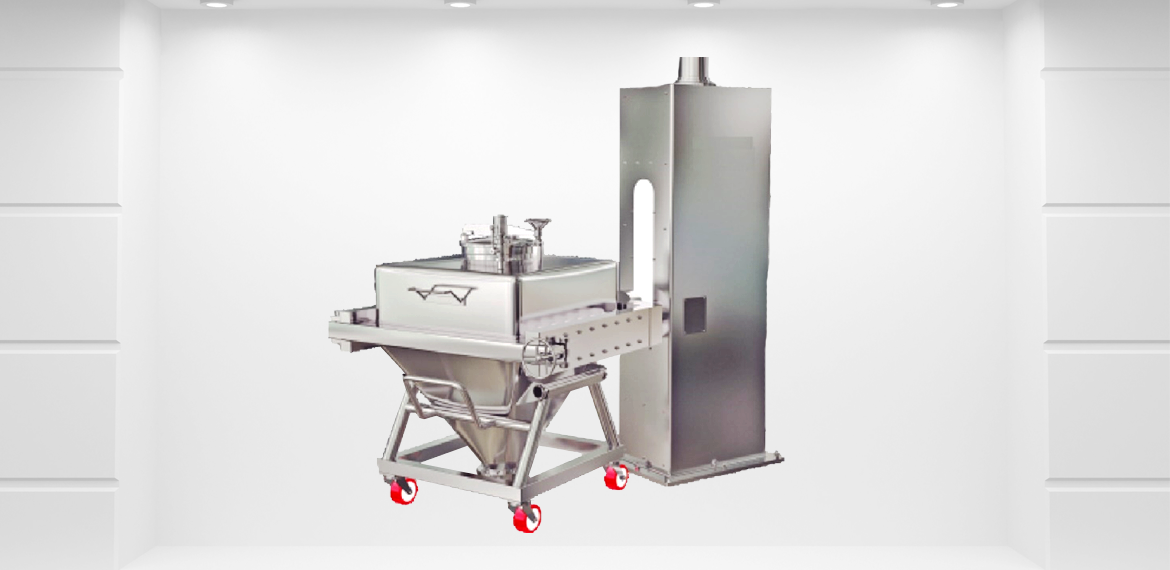

Boinns Bin blenders are used mainly for blending of dry powders for tablet and capsule manufacturing process, which facilitates better flow for tablets and capsules. This is a closed contained, totally dust free single step transfer system. It can handle more than one size of container (Bin).

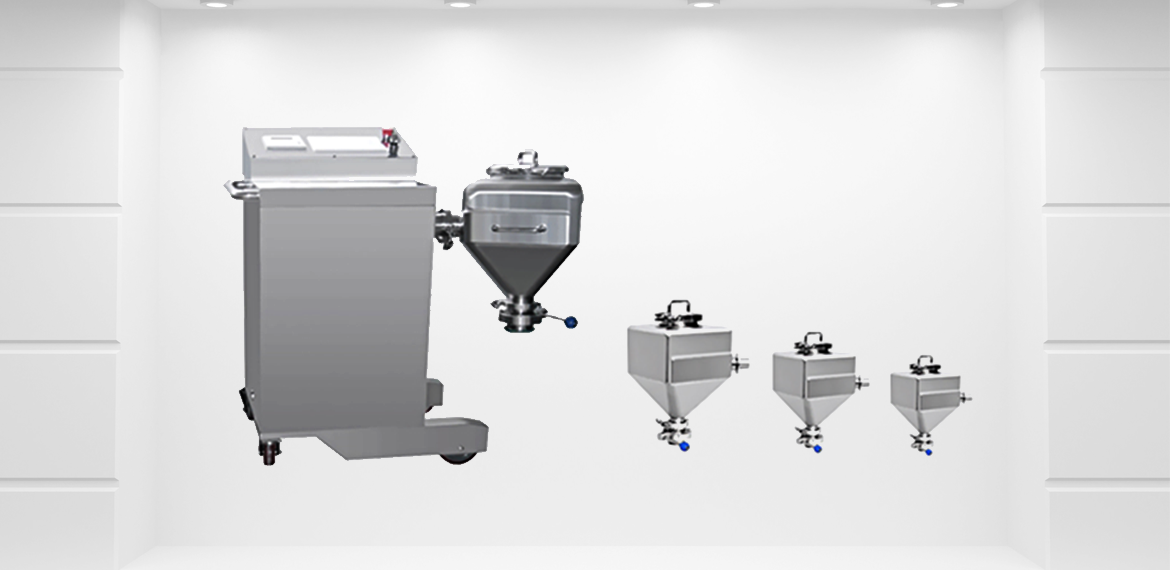

Conta Blender has a flexibility of Batch Volume. Varying size of containers can be mounted on a drive console which is equipped which clamping arm. Batch size variation achievable in 3000 Liters. Model for example, is from 5 Liters to 3000 Liters. using different sizes of containers. The mixing efficiency is better than the other type of tumbling blenders like Double Cone, 'V' or Octa as they rotate in a diagonal and in a eccentric plane. It shuffles the product intimately resulting in homogeneous blend within 5-20 min.
Salient Features
- 0° stopping for easy docking and undocking of the bin.
- A suitable fencing around the arm with an entry point for the bin on detachable trolley.
- Limit switch on entry door to prevent the accidental operation of the arm.
- Flexibility of accepting variable bin sizes providing wide range of batch volumes.
- cGMP construction with cladded polished S. S. sheets.
- The charging hole with cover is provided on top with quick opening and closing arrangement with dust proof joints for particle free transfer.
- Built-in Butterfly valve (150 mm dia) at the bottom suitable for discharge.
- Suitable leak proof vent on top.
- Highly effective for low volume active blending with as low as 1 % active.
- Processing of different sizes of production batches in single equipment with scale up data.
- 99 Recipe inbuilt
- 21 CFR Part 11 Compliances
- Printing option with USB
- MOC SS 316L Optional
- Sampling Port Optional
In principle all sizes of our Conta Blenders are available
| Model | Gross Capacity
(Liters) | Working
(Liters) | Capacity
(Kgs) | Overall Dimensions
(in mm) | RPM | Drive Motor | Power Pack |
|---|
| L | B | H | | HP | Motor HP |
| BOIN -CB-50 | 60 | 50 | 25 | 2300 | 950 | 2100 | 10 | 1 | 1 |
| BOIN -CB-60 | 72 | 60 | 30 | 2200 | 1050 | 2300 | 10 | 1 | 1 |
| BOIN -CB-100 | 120 | 100 | 50 | 2500 | 1500 | 3200 | 10 | 1.5 | 1 |
| BOIN -CB-120 | 150 | 120 | 60 | 2900 | 2700 | 4300 | 10 | 1.5 | 1 |
| BOIN -CB-200 | 240 | 200 | 100 | 3200 | 1800 | 4400 | 10 | 2 | 1.5 |
| BOIN -CB-240 | 300 | 240 | 120 | 4450 | 4520 | 4600 | 10 | 3 | 1.5 |
| BOIN -CB-300 | 360 | 300 | 150 | 5900 | 3000 | 7000 | 10 | 3 | 1.5 |
| BOIN -CB-500 | 600 | 500 | 250 | 6000 | 3500 | 7500 | 8 | 5 | 2 |
