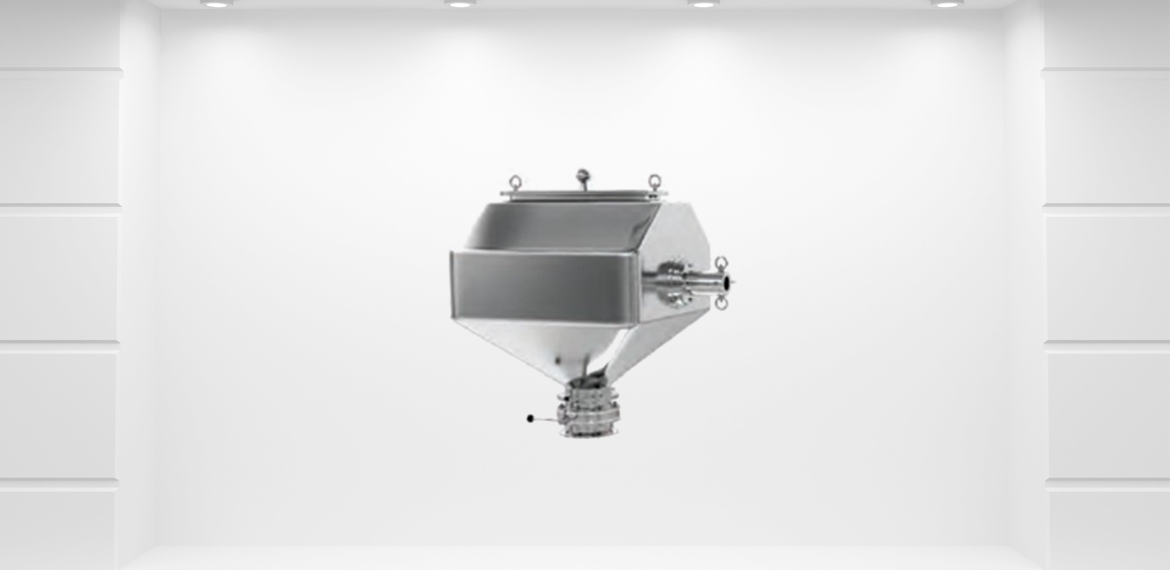

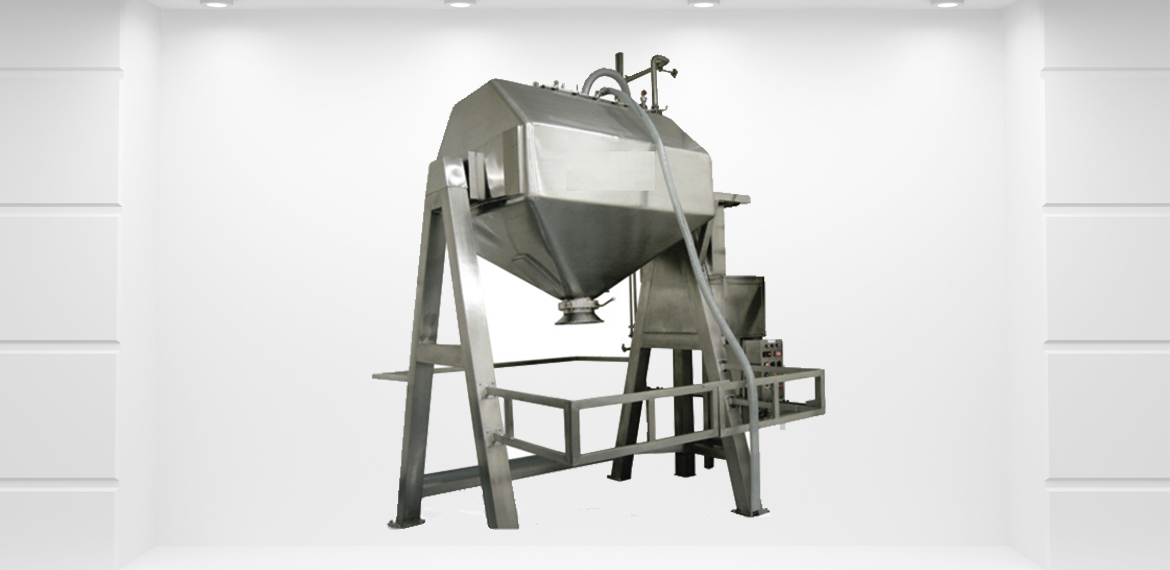

Boinns OCTAGONAL BLENDER is an efficient and versatile blending machine for mixing and lubrication process of dry granules homogeneously. Two third of the volume of the Octagonal Blender is filled to ensure proper mixing. The Octagonal Blender gives best result for granules due to very slow speed and octagon shape of container. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc.
In Octagonal Blender the granules come from all sides due to the octagonal shape of the product container, hence requirement of RPM is less. Suitable mainly for Crystalline & Granular type material.
This type of material gets sufficient continuous movement due to their shape if container have only slow movement and will results in good quality of blending / lubrication of granules.
Salient Features
- Material handling in Octa Blender is through Bin charging or a Vacuum charging system.
- Bin charging system ensures Dust free closed system for Charging and Discharging of Product.
- Slow speed Blender with Gentle blending of Dry granule.
- Optional in built in Vacuum design. No external PTS required.
- The baffles are eliminated with blending profile analysis available.
- Pneumatically actuated valves for dust free transfers.
- Bins with Level sensory for automatic cut off.
- Mechanical Seals on shafts for Pneumatic connections.
- cGMP design for ease of cleaning.
- CE Certified.
- Capacities available from 1 L to 10000 L (Higher capacity up to 20000 L on demand)
In principle all sizes of our Octagonal Blenders are
| Model | Gross Capacity
(Liters) | | Working Capacity | Discharge | Overall Dimensions (Inc) | Speed
RPM | Drive Motor
Hp/Kw |
|---|
| | (Liters) | (kgs) | Valve | Length | Width | Height | RPM | Hp/Kw |
| BOIN-OCB-5 | 5 | 3.75 | 3.5 | 1.5 | 2" | 700 | 1200 | 900 | 4 to 12 | 1/0.7 |
| BOIN-OCB-15 | 15 | 11.25 | 10 | 5 | 3" | 700 | 1200 | 900 | 4 to 12 | 1/0.7 |
| BOIN-OCB-50 | 50 | 37.5 | 35 | 15 | 3" | 700 | 1200 | 900 | 4 to 12 | 1/0.7 |
| BOIN-OCB-100 | 100 | 75 | 75 | 35 | 4" | 1100 | 1200 | 1500 | 4 to 12 | 2/1.5 |
| BOIN-OCB-250 | 250 | 187.5 | 175 | 90 | 6" | 2000 | 1500 | 1800 | 4 to 12 | 3/5 |
| BOIN-OCB-500 | 500 | 375 | 350 | 175 | 6" | 2350 | 1600 | 2100 | 4 to 12 | 5/7.5 |
| BOIN-OCB-750 | 750 | 562.5 | 500 | 250 | 6" | 2450 | 1700 | 2250 | 4 to 12 | 5/7.5 |
| BOIN-OCB-1000 | 1000 | 750 | 750 | 375 | 8" | 2600 | 1800 | 2400 | 4 to 12 | 7.5/10 |
| BOIN-OCB-1500 | 1500 | 1125 | 1125 | 500 | 8" | 2800 | 1900 | 2600 | 4 to 12 | 7.5/10 |
| BOIN-OCB-2000 | 2000 | 1500 | 1500 | 700 | 8" | 3000 | 2200 | 2650 | 4 to 12 | 10/15 |
| BOIN-OCB-3000 | 3000 | 2250 | 2250 | 1100 | 10" | 3175 | 2400 | 2800 | 4 to 12 | 10/15 |
| BOIN-OCB-4000 | 4000 | 3000 | 3000 | 1400 | 10" | 3200 | 2500 | 2900 | 4 to 12 | 15/20 |
