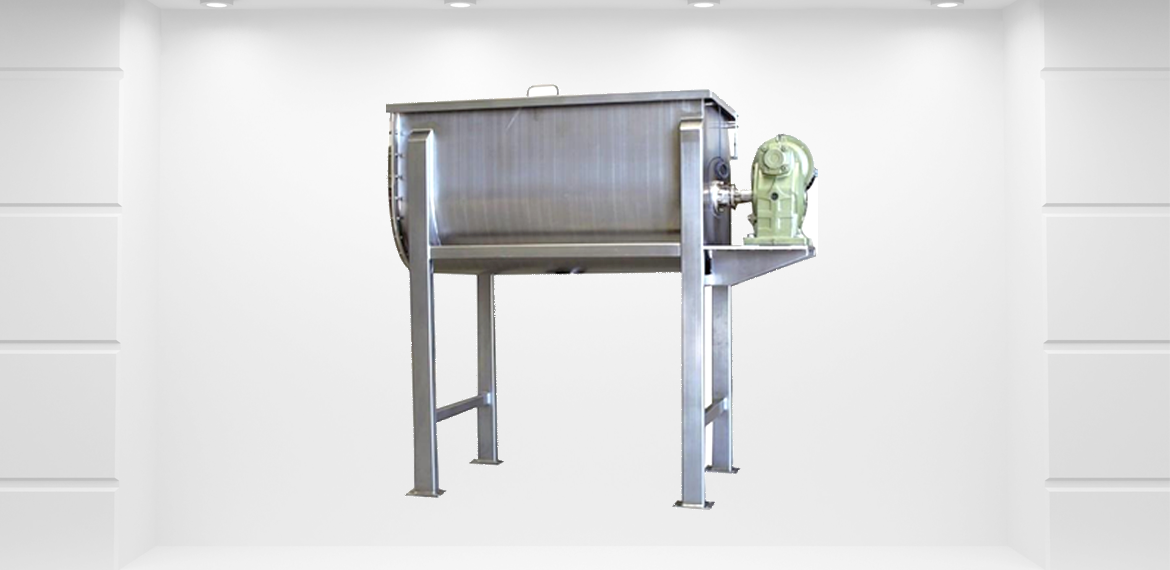

Boinns Ribbon Blenders designs are ideal for mixing dry free-flowing solids
Ribbon blender are used for all dry foods products, nutraceuticals, protein powder mixes, dry juice mixes, chemicals, fertilizer, insecticides, colorants, resins and polymers. The moderate shear of the ribbon or paddle naturally breaks down lumps and agglomerates.

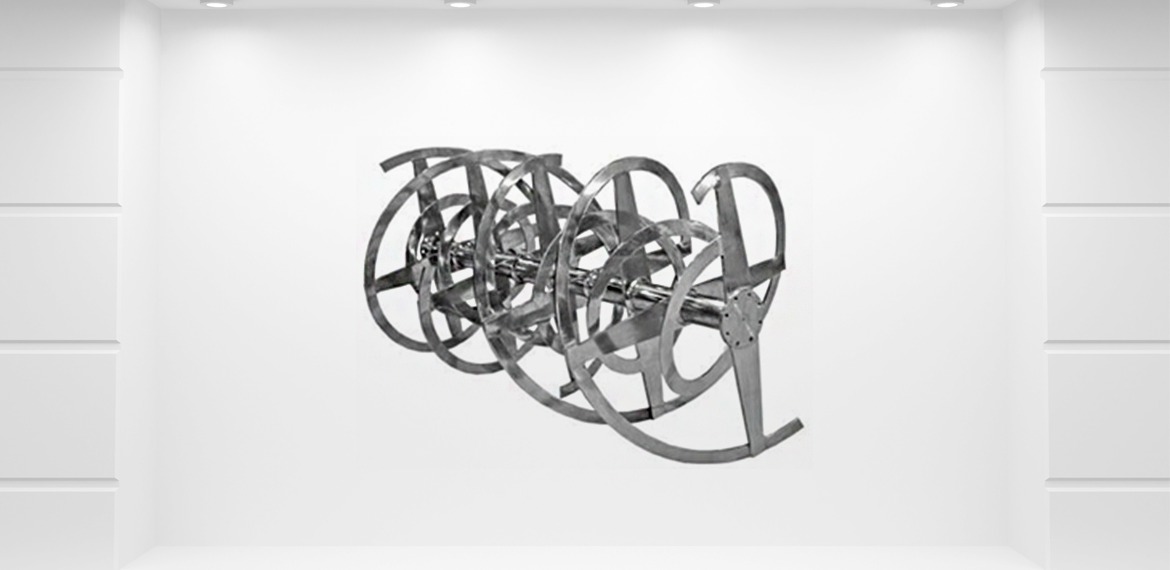

Ribbon blenders are extremely efficient and economical. The double ribbon mixer design moves solids in two directions simultaneously and also rotationally to provide the mixing action.
The inner ribbon mixer moves the solids toward the ends of the trough and the outer ribbons move solids toward the middle of the trough. When discharging the solids, the outer ribbons move the solids toward the center discharge valve.
Standard Design Features
- Material : Contact part 316 and Non contact part 304 Stainless Steel
- Interior Surfaces : Polished 180 Grit
- Exterior Surfaces : Glass Bead Blasted
- Discharge : Swing away flush valve with pneumatic actuation
- Working Capacities : 75 to 20000 Liters Capacity
- Drive : Hollow Bore SEW Eurodrive
- Controls : Soft Start or VFD
- Loading : Loading Cover(s) with Welded Grate
- Safety : Magnetic Safety Switch(s) on Main Cover
Optional Features
- Options Features
- Slide-gate discharge valve with pneumatic actuator
- Liquid Addition Spray Bar and nozzles
- CIP-Clean-In-Place Spray Nozzles
- Purged Seals
- Modified covers with custom designed ports
- Product temperature sensor
- Vacuum compatible design
- Explosion-proof motors
- Higher HP drives
- Shaft-mounted or hollow-bore gear reducers
- Soft-start or variable frequency drives
In principle all sizes of our Ribbon Blenders are available
| Model | Working Capacity | Ribbon | Motor | Body Dimensions | Overall Dimension |
|---|
| | Total
Volume (Ltr) | Working
Volume
(Ltr) | Batch
Capacity (Kgs) | RPM | HP | Length
mm | Width
mm | Height
mm | Length
mm | Width
mm | Height
mm |
| BOINNS-RB-75 | 75 | 50 | 25 | 40 | 1 | 750 | 275 | 400 | 1750 | 950 | 1700 |
| BOINNS-RB-100 | 150 | 100 | 50 | 40 | 1.5 | 850 | 400 | 500 | 1900 | 1175 | 1850 |
| BOINNS-RB-200 | 300 | 200 | 100 | 40 | 3 | 1250 | 450 | 600 | 2500 | 1300 | 1950 |
| BOINNS-RB-300 | 450 | 300 | 150 | 40 | 5 | 1500 | 500 | 650 | 2800 | 1400 | 2050 |
| BOINNS-RB-400 | 600 | 400 | 200 | 40 | 7.5 | 1700 | 550 | 700 | 3100 | 1450 | 2100 |
| BOINNS-RB-500 | 800 | 500 | 250 | 40 | 7.5 | 1800 | 600 | 800 | 3400 | 1525 | 2100 |
| BOINNS-RB-750 | 1100 | 750 | 325 | 30 | 10 | 1900 | 650 | 900 | 3550 | 1550 | 2200 |
| BOINNS-RB-1000 | 1500 | 1000 | 500 | 30 | 12.5 | 1900 | 750 | 1050 | 3670 | 1650 | 2280 |
| BOINNS-RB-1250 | 1900 | 1250 | 625 | 30 | 15 | 2100 | 850 | 1100 | 3850 | 1825 | 2450 |
| BOINNS-RB-1500 | 2250 | 1500 | 1250 | 30 | 20 | 2250 | 900 | 1200 | 4000 | 1950 | 2500 |
| BOINNS-RB-2000 | 3000 | 2000 | 1000 | 30 | 25 | 2500 | 1000 | 1350 | 4300 | 2050 | 2600 |
| BOINNS-RB-3000 | 4500 | 3000 | 1500 | 30 | 40 | 2700 | 1100 | 1500 | 4780 | 2150 | 2800 |
| BOINNS-RB-5000 | 7500 | 5000 | 2500 | 30 | 50 | 3500 | 1250 | 1700 | 6300 | 1900 | 3000 |
| BOINNS-RB-7500 | 11000 | 7500 | 3750 | 30 | 60 | 3800 | 1600 | 2100 | 6350 | 2000 | 3500 |
| BOINNS-RB-10000 | 15000 | 10000 | 5000 | 30 | 75 | 4000 | 1850 | 2250 | 6500 | 2150 | 3650 |
