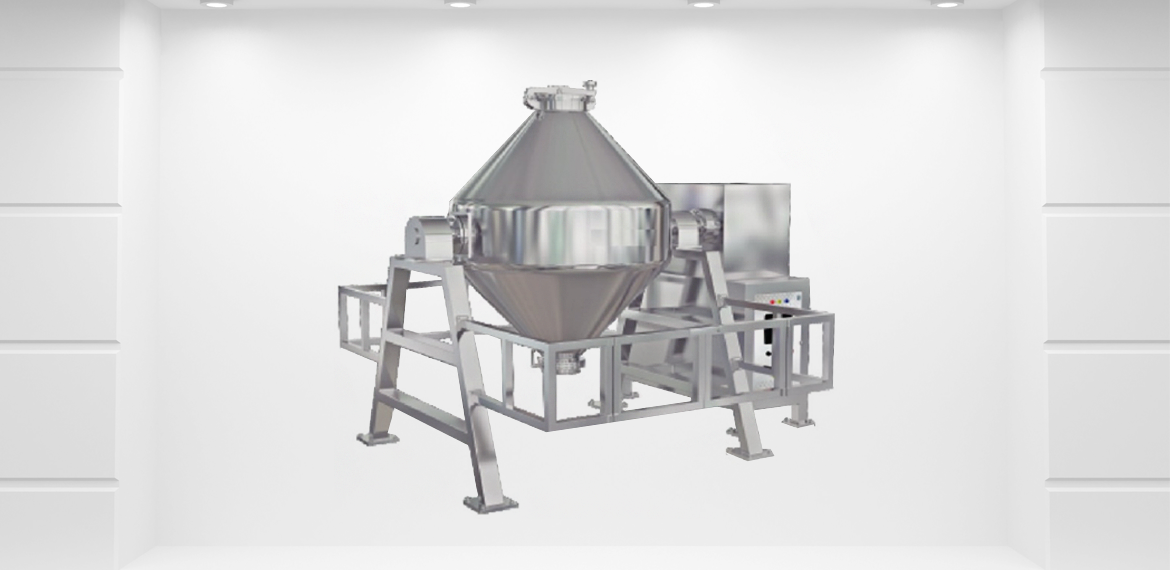

Boinns Double Cone Blender most often used for the intimate dry blending of free-flowing solids.basic machine with two cone blender volume for optimum homogeneity is between 30-75% of gross volume - depend on powder /granules.
The Double - Two shape blenders machines have long two corners of materials product container for more rubbing & tumbler effect for fast and homogenizing products mixing. It can perform products materials homogeneously dry mixing of free-flowing blending powders, granules requiring low shearing force, powder Mixing and Blending of particles with rapid inter-mixing of particles irrespective of varying specific gravities of products.
The product's material is loaded into the double cone blender drum and cone both side special type knows type fitting given. The double blender is double cone - tumbles the material in the container and spread out and quick easily operable flange fitting given to operator can open and take the blended product. The products mixing is achieved in 5 to 20 minutes with better homogeneity depend on powder/granules.
Salient Features
- Special Heavy-duty Design as per cGMP Practices compliance.
- Done blender Product contact parts Stainless Steel AISI 316/ 316L & non contact parts Stainless Steel 304.
- Available Capacity model in cone blender 3 to 5000 Ltrs batch size.
- Rigid Heavy duty drive with a reduction gearbox and motor with the control panel.
- Materials Product container having discharge with butterfly valve and manhole.
- Cone Charging hole with hinged lid with the seal for charging and cleaning.
- Optionally PLC Controls with HMI touch screen,
- Flame-proof motor and Push Button station.
- Optionally - Inline milling and loading with vacuum powder transfer systems.
- Dust free closed system in Bin charging
- An option of 21cfr part 11 compliance control system
- Bins with Level sensory for automatic cut off
- Validation Document – DQ, IQ, PQ, OQ and manual provide on additional extra cost.
In principle all sizes of our Double Cone Blenders are
| MODEL | BOIN-DCB -15 | BOIN-DCB -100 | BOIN-DCB-300 | BOIN-DCB-500 | BOIN-DCB-750 | BOIN-DCB - 1000 | BOIN-DCB-2000 |
|---|
| Gross Volumn in Ltrs | 15 | 100
| 300 | 500 | 750 | 1000 | 2000 |
| Working Volumn in Ltrs | 9 | 60 | 180 | 300 | 450 | 600 | 1200 |
| Capacity in Kg (Max) | 5 | 30 | 100 | 175 | 250 | 350 | 700 |
| RPM | 2 to 12 | 2 to 12 | 2 to 12 | 2 to 12 | 2 to 12 | 2 to 12 | 2 to 12 |
| Charging Ht in mm | 700 | 1350 | 1650 | 1800 | 2000 | 2300 | 2650 |
| Discharging Ht in mm | 300 | 600 | 650 | 700 | 650 | 750 | 750 |
| Charging lid dia in mm | φ 150 | φ 250 | φ 300 | φ 350 | φ 400 | φ 400 | φ 500 |
| Discharge valve dia mm | φ 75 | φ 125 | φ 150 | φ 175 | φ 200 | φ 200 | φ 250 |
| Main drive motor | 0.5 HP | 2HP | 3HP | 5HP | 5HP | 7.5HP | lOHP |
